AWS Lambda

BoxLang Runtime for AWS Lambda! Serverless for the win!

What is AWS Lambda?

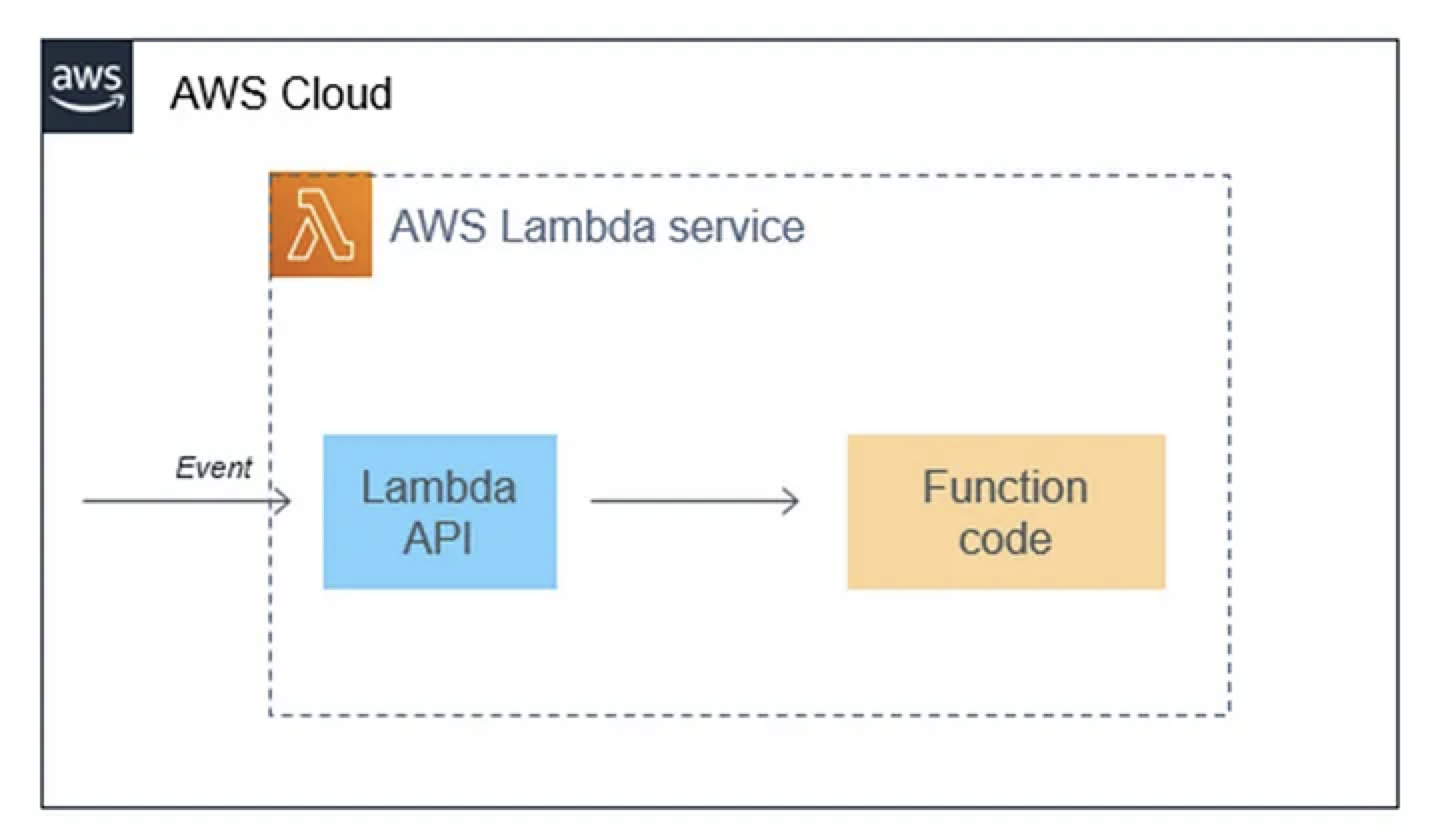

AWS Lambda is a serverless computing service provided by Amazon Web Services (AWS) that lets you run code without provisioning or managing servers. It automatically scales applications by running code in response to events and allocates compute resources as needed, allowing developers to focus on writing code rather than managing infrastructure (https://docs.aws.amazon.com/lambda/).

The BoxLang AWS Runtime allows you to code in BoxLang and create Lambda functions in this ecosystem. We provide you a nice template so you can work with serverless: https://github.com/ortus-boxlang/boxlang-starter-aws-lambda. This template will give you a turnkey application with features like:

Unit and Integration Testing
Java dependency management via Maven
BoxLang dependency management
Automatic shading and packaging
Class compilation caching for improved performance
Connection pooling for database operations
Configuration management with environment overrides
SAM CLI integration for local testing
GitHub actions to: test, build and release automatically to AWS
Performance monitoring and debugging capabilities

Not found

📋 Table of Contents

BoxLang Lambda Handler

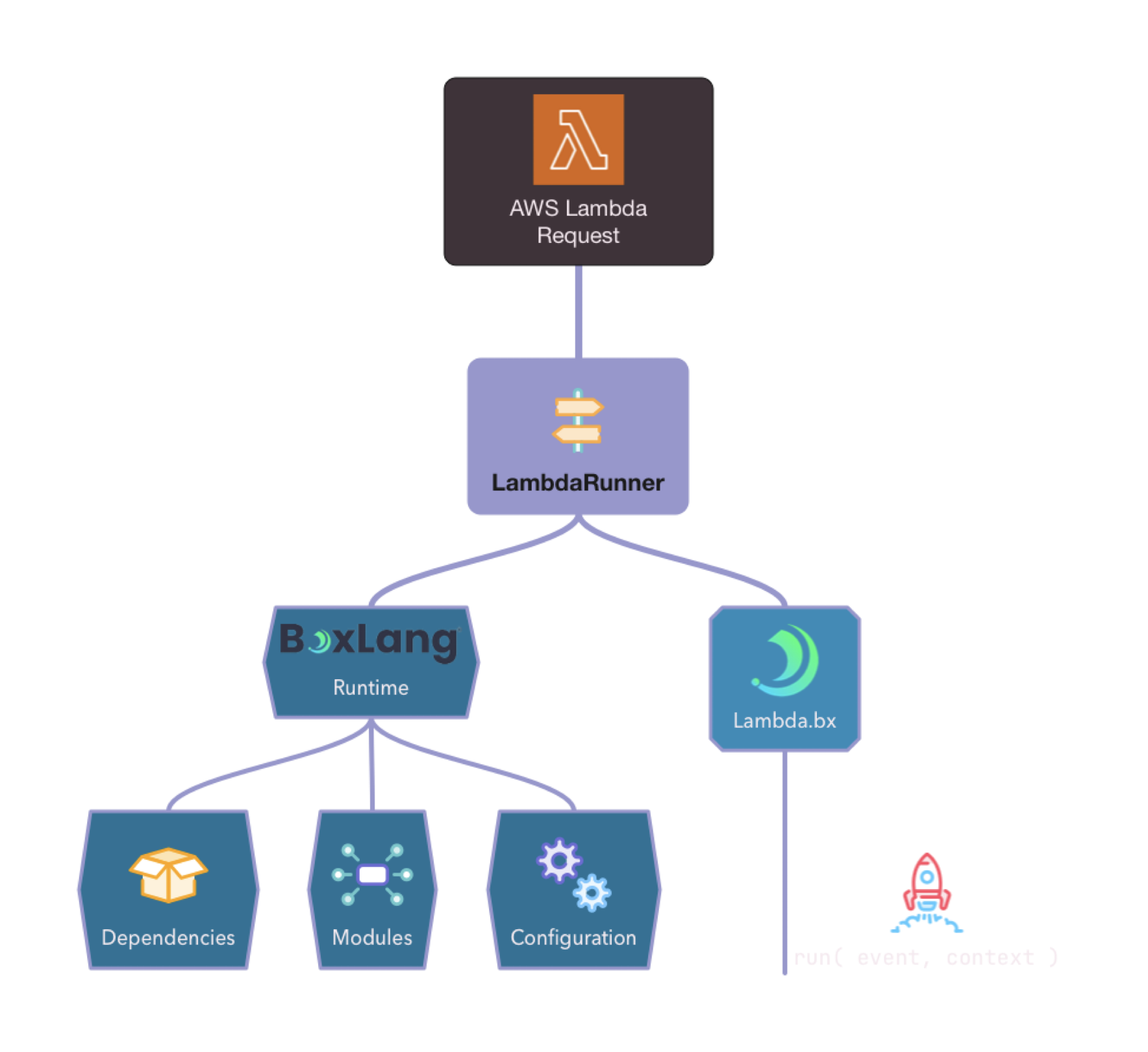

Our BoxLang AWS Handler acts as a front controller to all incoming Lambda executions. It provides you with:

Automatic request management to an event structure
Automatic logging and tracing
Execution of your Lambda classes by convention
Automatic error management and exception handling
Automatic response management and serialization
Life-Cycle Events via our Application.bx
NEW: Class compilation caching for improved performance
NEW: Connection pooling for database operations
NEW: Performance metrics and debugging capabilities
NEW: Custom method resolution via headers

The BoxLang AWS runtime provides a pre-built Java handler for Lambda already configured to accept JSON in as a BoxLang Struct and then output either by returning a simple or complex object or using our response convention struct. Our runtime will automatically convert your results to JSON.

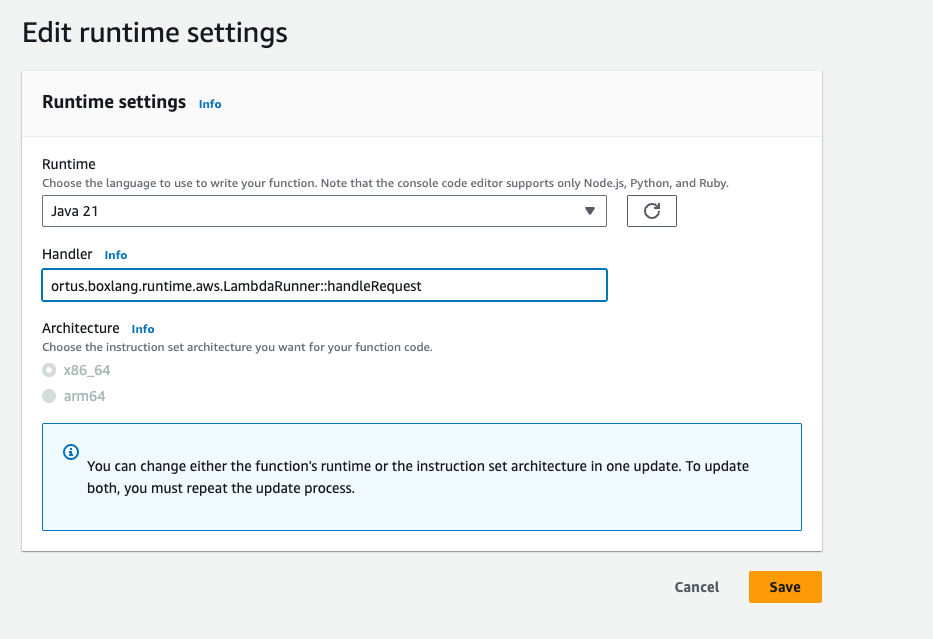

The default handler you configure your lambda with is:

ortus.boxlang.runtime.aws.LambdaRunner::handleRequest

You can see the code for the handler here: https://github.com/ortus-boxlang/boxlang-aws-lambda/blob/development/src/main/java/ortus/boxlang/runtime/aws/LambdaRunner.java#L161

The handler will look for a Lambda.bxin your package and execute the run()method by convention.

Lambda.bx

class {

    function run( event, context, response ){


    }

}

Environment Variables

The following are all the environment variables the Lambda runtime can read and detect. If they are set by you or the AWS Lambda runner, then it will use those values to alter operations. This doesn't mean that they will exist at runtime, it just means you can set them to alter behavior.

Environment Variable

Description

BOXLANG_LAMBDA_CLASS

Absolute path to the lambda to execute. The default path is: /var/task/Lambda.bx Which is your lambda deployed within your zip file.

BOXLANG_LAMBDA_DEBUGMODE

Turn runtime debug mode on or off. When enabled, provides performance metrics and detailed logging.

BOXLANG_LAMBDA_CONFIG

Absolute path to a custom boxlang.json configuration for the runtime. Defaults to /var/task/boxlang.json

BOXLANG_LAMBDA_CONNECTION_POOL_SIZE

NEW: Configure the connection pool size for database operations. Default is 2 connections.

LAMBDA_TASK_ROOT

Lambda deployment root directory. Defaults to /var/task

You can also leverage ANY environment variable to configure the BoxLang runtime using our runtime environment conventions.

Performance Environment Variables

The runtime now includes several performance optimizations that can be controlled via environment variables:

Class Compilation Caching: Lambda classes are automatically cached to avoid recompilation
Connection Pooling: Database connections are pooled and reused across invocations
Performance Metrics: Debug mode provides timing and memory usage information

BoxLang AWS Template

The BoxLang default template for AWS lambda can be found here: https://github.com/ortus-boxlang/boxlang-starter-aws-lambda. The structure of the project is the following:

/.vscode - Some useful vscode tasks and settings
/gradle - The gradle runtime, keep in source control
/src
  + main
    + bx
      + Application.bx (Your life-cycle class)
      + Lambda.bx (Your BoxLang Lambda function)
  + resources
    + boxlang.json (A custom BoxLang configuration file)
    + boxlang_modules (Where you will install BoxLang modules)
  + test
    + java
      + com
        + myproject
          + LambdaRunnerTest.java (An integration test for your Lambda)
          + TestContext.java (A testing context for lambda)
          + TestLogger.java (A testing logger for lambda)
/workbench - AWS lambda utilities and scripts
  + config.env - Default configuration settings
  + config.local.env - Local configuration overrides (create from config.env)
  + sampleEvents/ - Sample Lambda event payloads for testing
  + template.yml - SAM template for local testing and deployment
  + *.sh - Deployment and management scripts
/box.json - Your project's dependency descriptor for CommandBox
/build.gradle - The gradle build configuration
/gradle.properties - Where you store your version and metadata
/gradlew - The gradle shell executor, keep in source control
/gradlew.bat - The gradle shell executor, keep in source control
/settings.gradle - The project settings

The BoxLang AWS Lambda runtime will look for a Lambda.bx in your package by convention and execute the run() method for you.

Key Template Features

Configuration Management: Hierarchical configuration system using config.env → config.local.env → environment variables
SAM Integration: Full AWS SAM support for local testing and deployment
Maven Dependency Resolution: Automatic dependency management via Maven
Performance Optimizations: Class caching, connection pooling, and performance monitoring built-in
Local Testing: Multiple Gradle tasks for local development and testing
AI Development Support: Comprehensive GitHub Copilot instructions for enhanced development experience

AI-Assisted Development: The BoxLang AWS Lambda template includes comprehensive GitHub Copilot instructions (.github/copilot-instructions.md) that provide AI assistants with detailed context about:

Project architecture and conventions
Build system and deployment workflows
Pascal case routing patterns
Configuration management
Testing strategies and file locations

This enables more accurate and contextual assistance when developing BoxLang Lambda functions.

Building and Testing

# Create local configuration (customize as needed)
cp workbench/config.env workbench/config.local.env

# Run the tests
./gradlew test

# Build the project, create the lambda zip
# The location is /build/distributions/{project}-{version}.zip
./gradlew build

# Local testing with SAM
./gradlew runLocal          # Basic Lambda execution
./gradlew runLocalApi       # API Gateway event
./gradlew runLocalLegacy    # Legacy API Gateway event

# Start local HTTP server for API testing
./gradlew startSamServerBackground

# Clean build artifacts
./gradlew clean

Lambda.bx

The Lambda function is a BoxLang class with a single function called run().

Lambda.bx

/**
 * My BoxLang Lambda
 */
class{

	function run( event, context, response ){
		response.body = {
			"error": false,
			"messages": [],
			"data": "====> Incoming event " & event.toString()
		};
		response.statusCode = 200;
	}
}

Arguments

It accepts three arguments:

Argument

Type

Description

event

Struct

All the incoming JSON as a BoxLang struct

context

com.amazonaws.services.lambda.runtime.Context

The AWS context object. You can find much more information here.

response

Struct

A BoxLang struct convention for a response.

You can find more information about the AWS Context object here: https://docs.aws.amazon.com/lambda/latest/dg/java-context.html

Event

The event structure is a snapshot of the input to your lambda. We deserialize the incoming JSON for you and give you a nice struct.

Context

This is an Amazon Java class that provides extensive information about the request. For more information, check out the API in the Amazon Docs (https://docs.aws.amazon.com/lambda/latest/dg/java-context.html)

Context methods

getRemainingTimeInMillis() – Returns the number of milliseconds left before the execution times out.
getFunctionName() – Returns the name of the Lambda function.
getFunctionVersion() – Returns the version of the function.
getInvokedFunctionArn() – Returns the Amazon Resource Name (ARN) that's used to invoke the function. Indicates if the invoker specified a version number or alias.
getMemoryLimitInMB() – Returns the amount of memory that's allocated for the function.
getAwsRequestId() – Returns the identifier of the invocation request.
getLogGroupName() – Returns the log group for the function.
getLogStreamName() – Returns the log stream for the function instance.
getIdentity() – (mobile apps) Returns information about the Amazon Cognito identity that authorized the request.
getClientContext() – (mobile apps) Returns the client context that's provided to Lambda by the client application.
getLogger() – Returns the logger object for the function.

Response

The response argument is our convention to help you build a nice return structure. However, it is completely optional. You can easily return a simple or complex object from your lambda, and we will convert it to JSON.

response : {
  statusCode : 200,
  headers : {
    content-type :  "application/json",
    access-control-allow-origin : "*",
  },
  body : YourLambda.run() results
}

/**
 * My BoxLang Lambda Simple Return
 */
class{

  function run( event, context, response ){
    return "Hello World!"
  }

}

/**
 * My BoxLang Lambda Complex Return
 */
class{

  function run( event, context, response ){
    return {
      age : 1,
      when : now(),
      data : [ 12,3234,23423 ]
    };
  }

}

Now you can go ahead and build your function. You can use TestBox to unit test your Lambda.bx or we even include a src/test folder in Java, that simulates the full life-cycle of the runtime. Just run gradle test or use VSCode BoxLang IDE to run the tests. Now we go to production!

Performance Enhancements

The BoxLang AWS Lambda runtime includes several performance optimizations:

Class Compilation Caching

Lambda classes are automatically cached between invocations to avoid recompilation overhead:

// Your Lambda classes are compiled once and cached
class {
    function run( event, context, response ) {
        // This class is cached after first compilation
        return processEvent( event );
    }
}

Connection Pooling

Database connections are pooled and reused across Lambda invocations:

// Configure connection pool size via environment variable
// BOXLANG_LAMBDA_CONNECTION_POOL_SIZE=5

function run( event, context, response ) {
    // Connections are automatically pooled and reused
    var results = queryExecute( "SELECT * FROM users" );
    return results;
}

Performance Monitoring

Enable debug mode to get performance metrics:

# Set environment variable for performance monitoring
BOXLANG_LAMBDA_DEBUGMODE=true

This provides:

Class compilation timing
Memory usage metrics
Request processing duration
Connection pool statistics

Convention-Based URI Routing

NEW in v1.5.0: The runtime now supports automatic routing using PascalCase conventions, allowing you to build multi-class Lambda functions with BoxLang easily following our conventions.

When your Lambda is exposed as a URL, the runtime can automatically route to different BoxLang classes based on the URI path:

// URL: /products -> Products.bx
// URL: /home-savings -> HomeSavings.bx
// URL: /user-profile -> UserProfile.bx

Example Multi-Class Structure

/src/main/bx/
  ├── Lambda.bx          # Default handler (fallback)
  ├── Products.bx        # Handles /products
  ├── HomeSavings.bx     # Handles /home-savings
  └── UserProfile.bx     # Handles /user-profile

Each class should implement a run function:

// Products.bx
class {
    function run( event, context, response ) {
        return {
            "statusCode" : 200,
            "body" : serializeJSON( getProductCatalog() )
        };
    }

    function getProductCatalog() {
        return [
            { "id": 1, "name": "BoxLang Runtime" },
            { "id": 2, "name": "CommandBox" }
        ];
    }
}

URI to Class Name Conversion

The routing follows these conventions:

/products → Products.bx
/home-savings → HomeSavings.bx
/user-profile → UserProfile.bx
/user_profile → UserProfile.bx

Hyphens and underscores are converted to PascalCase. Subdirectories are not currently supported.

Multiple Functions Header

The runtime also allows you to create other functions inside of your Lambda that can be targeted if your AWS Lambda is exposed as an URL. You will be able to target different functions in your Lambda.bx by using the following header when executing your lambda:

x-bx-function=methodName

This makes it incredibly flexible where you can respond to that incoming header in a different function than the one by convention.

Lambda Modules

You can use any BoxLang module with the BoxLang Lambda runtime by installing them to the src/resources/boxlang_modules folder. All modules placed there during the build process will be packaged into your lambda deployment.

# Using CommandBox to install modules directly
box install id=bx-module directory=src/resources/boxlang_modules

# Or add them to box.json and install
cd src/resources && box install

Local Development & Testing

The template provides comprehensive local development and testing capabilities:

SAM CLI Integration

# Test your function locally with different event types
./gradlew runLocal          # Basic Lambda execution
./gradlew runLocalApi       # API Gateway event simulation
./gradlew runLocalLegacy    # Legacy API Gateway event

# Start a local HTTP server for API testing
./gradlew startSamServerBackground
./gradlew stopSamServer

Sample Events

The template includes sample event files in workbench/sampleEvents/:

api.json - API Gateway event
event.json - Basic Lambda event
event-live.json - Production-like event for testing

Testing Framework

The Java integration tests simulate the complete Lambda lifecycle:

// Example from LambdaRunnerTest.java
@Test
public void testLambdaExecution() {
    LambdaRunner runner = new LambdaRunner();
    String result = runner.handleRequest(sampleEvent, testContext);
    assertThat(result).contains("success");
}

Deploy to AWS

You can deploy your lambda using the provided deployment scripts or GitHub Actions. The template includes a comprehensive deployment system with configuration management.

Configuration-Based Deployment

The template uses a hierarchical configuration system:

Base Configuration: workbench/config.env - Default settings
Local Overrides: workbench/config.local.env - Your custom settings
Environment Variables: Final overrides

# Create your local configuration
cp workbench/config.env workbench/config.local.env

# Edit your settings
vim workbench/config.local.env

Example configuration:

# AWS Settings
AWS_LAMBDA_BUCKET=my-lambda-deployments
STACK_NAME=my-boxlang-app
FUNCTION_NAME=my-function
LAMBDA_MEMORY=512
LAMBDA_TIMEOUT=30
ENVIRONMENT=development

Deployment Scripts

The template provides several deployment scripts:

# Check AWS credentials and configuration
./workbench/0-check-aws.sh

# Create S3 bucket for deployments
./workbench/1-create-bucket.sh

# Deploy your Lambda function
./workbench/2-deploy.sh

# Invoke your deployed function
./workbench/3-invoke.sh

# Clean up resources
./workbench/4-cleanup.sh

GitHub Actions Deployment

Below is the enhanced GitHub Action that uses the new configuration system:

The Lambda function will be created automatically via CloudFormation if it doesn't exist, or updated if it does.

- name: Deploy BoxLang Lambda
  run: |
    ./workbench/2-deploy.sh
  env:
    AWS_REGION: ${{ secrets.AWS_REGION }}
    AWS_ACCESS_KEY_ID: ${{ secrets.AWS_PUBLISHER_KEY_ID }}
    AWS_SECRET_ACCESS_KEY: ${{ secrets.AWS_SECRET_PUBLISHER_KEY }}
    AWS_LAMBDA_BUCKET: ${{ secrets.AWS_LAMBDA_BUCKET }}
    ENVIRONMENT: ${{ github.ref == 'refs/heads/main' && 'production' || 'staging' }}

SAM Template Integration

The template includes a parameterized SAM template (workbench/template.yml) that:

Creates the Lambda function with proper configuration
Sets up IAM roles and permissions
Configures environment variables
Provides function outputs (name, ARN) for integration

Required Configuration

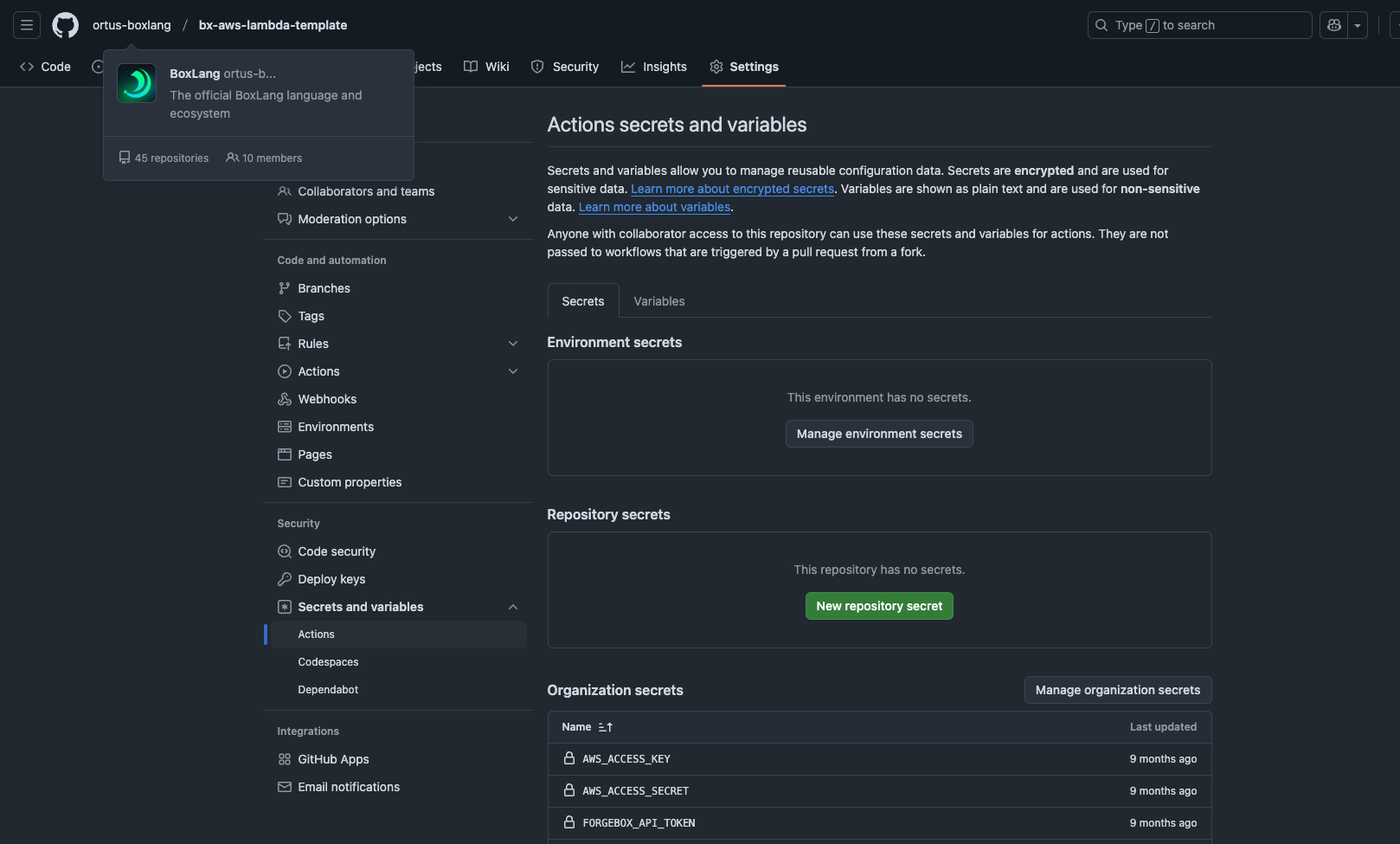

The automated deployment requires storing your credentials in your repository's secrets or environment variables:

AWS_REGION - The region to deploy to
AWS_PUBLISHER_KEY_ID - The AWS access key
AWS_SECRET_PUBLISHER_KEY - The AWS secret key
AWS_LAMBDA_BUCKET - S3 bucket for deployment artifacts

Environment-Based Deployments

The build process supports multiple environments based on Git branches:

Development Branch → staging environment
Main/Master Branch → production environment

The template automatically creates appropriately named functions:

{functionName}-staging - For development/staging
{functionName}-production - For production releases

The {functionName} comes from your FUNCTION_NAME configuration setting.

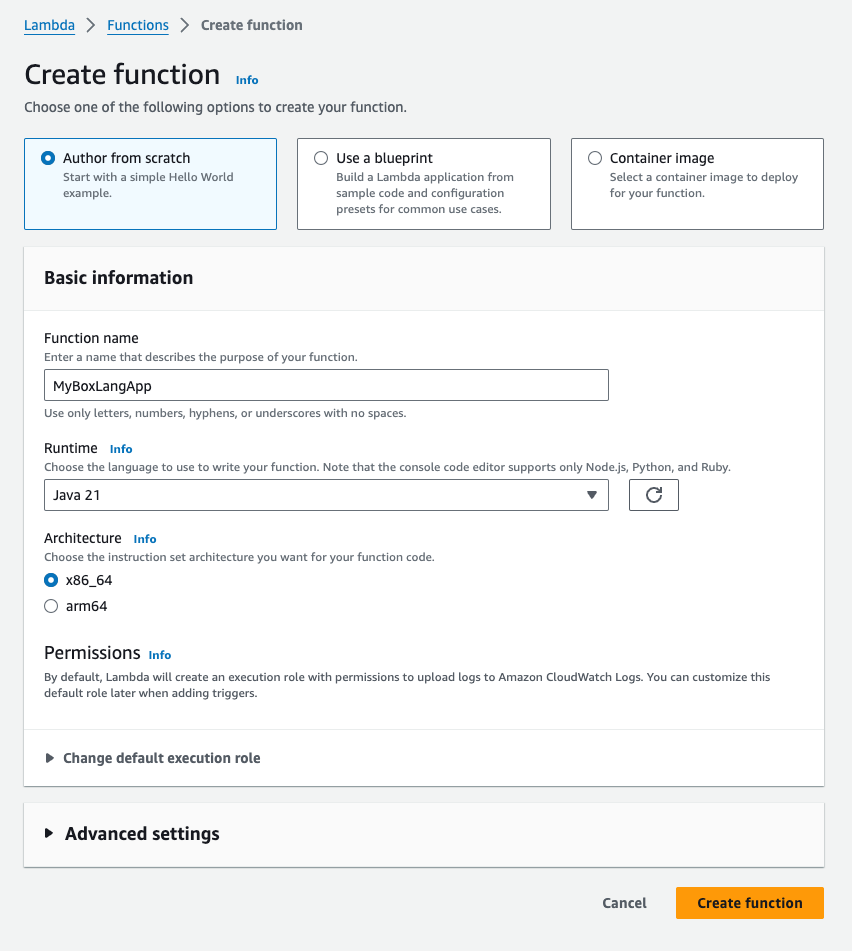

Now let's add the basic information about our deployment:

Add a function name: {projectName}-staging or production
Choose Java 21 as your runtime
Choose x86_64 as your architecture

TIP: If you choose ARM processors, you can save some money.

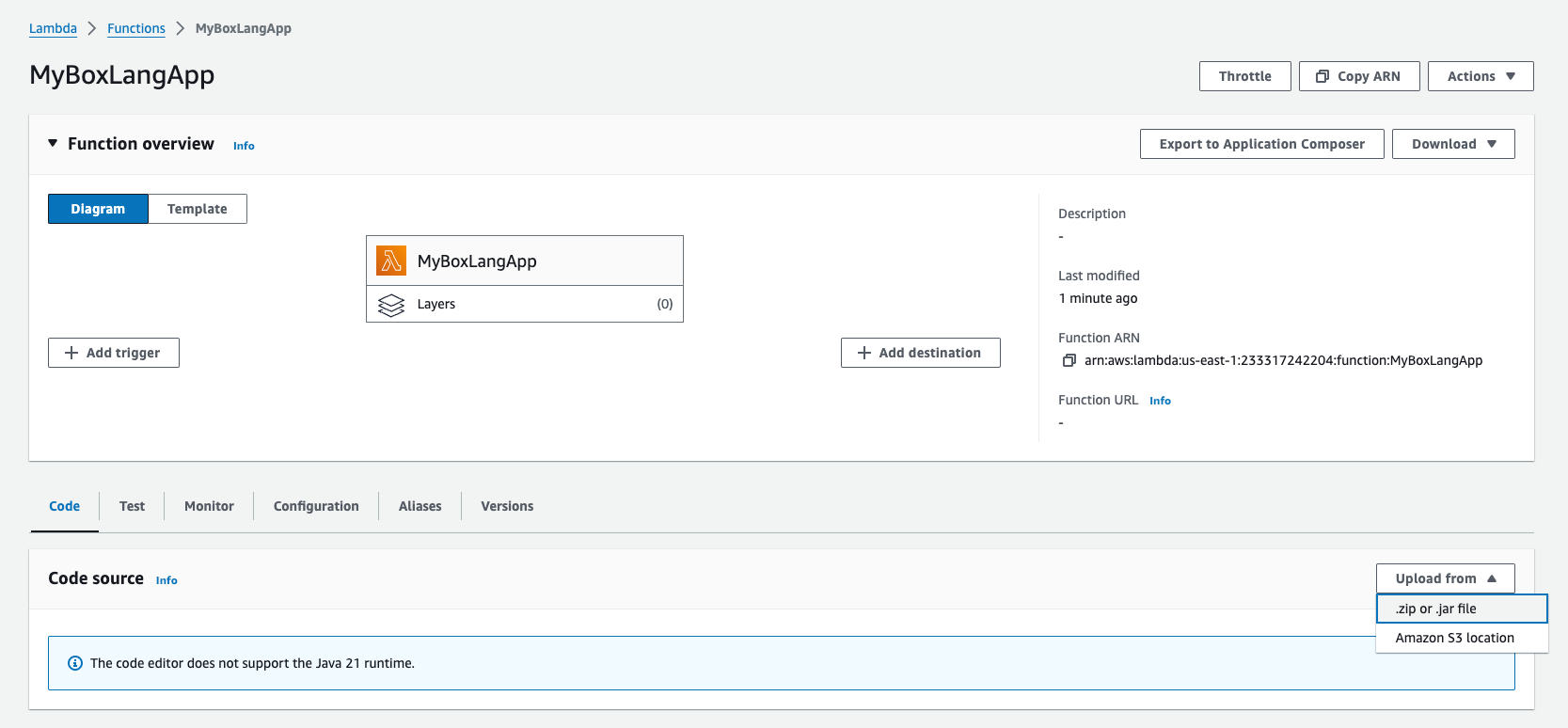

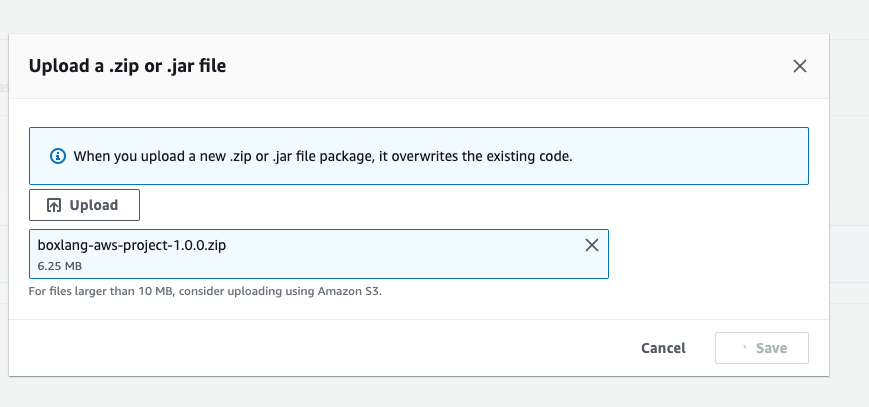

Now, let's upload our test code. You can choose a zip/jar or s3 location. We will do a simple zip from our template:

Now important, let's choose the AWS Lambda Runtime Handler in the Edit runtime settings

And make sure you use the following handler address: ortus.boxlang.runtime.aws.LambdaRunner::handleRequest This is inside the runtime to execute our Lambda.bx function.

Please note that the RAM you chose for your lambda determines your CPU as well. So make sure you increase the RAM accordingly. We have seen great results with 4GB+.

Testing in AWS

Now click on the Test tab and an event name MyTestEvent. You can also add anything you like in the Event JSON to test the input of your lambda. Then click on Test and watch it do its magic. Now go have some good fun!

Runtime Source Code

The AWS Runtime source code can be found here: https://github.com/ortus-boxlang/boxlang-aws-lambda

Latest Runtime Features

The BoxLang AWS Lambda runtime includes several recent enhancements:

Maven Dependency Management: Automatic resolution of runtime dependencies
Class Compilation Caching: Improved cold start performance through class caching
Connection Pooling: Database connection pooling for better performance
Performance Metrics: Detailed performance monitoring in debug mode
Enhanced Error Handling: Better error messages and stack traces
Configuration Flexibility: Hierarchical configuration system
SAM Integration: Full AWS SAM support for local development

Performance Best Practices

For optimal performance with the BoxLang AWS Lambda runtime:

Enable Class Caching: Use trustedCache=true in your boxlang.json for production
Configure Connection Pooling: Set BOXLANG_LAMBDA_CONNECTION_POOL_SIZE for database workloads
Memory Allocation: Allocate sufficient memory (2GB+ recommended) for better CPU performance
Static Initialization: Use static blocks for expensive one-time setup
Early Returns: Validate input early and return immediately on errors

We welcome any pull requests, testing, documentation contributions, and feedback.

PreviousRunning BoxLang NextCommandBox

Last updated 10 days ago

Was this helpful?
