MiniServer

BoxLang includes a lightning fast web server powered by Undertow!

The BoxLang MiniServer runtime is a lightweight, lightning-fast web server powered by Undertow. It's ideal for fast applications, desktop apps (Electron/JavaFX), embedded web servers, and development. For those who desire a more robust and feature-rich servlet server implementation, we offer our open-source FREE CommandBox server and CommandBox PRO with a BoxLang Subscription.

Tip: Please note that the BoxLang MiniServer is NOT a servlet server. There is no servlet container; the web server is just a simple, fast, and pure Java Undertow server.

CommandBox is our open-source servlet server implementation. However, with a Boxlang +/++ subscription, it becomes a powerhouse for mission-critical applications. Check out all that you get with CommandBox Pro: https://www.ortussolutions.com/products/commandbox-pro

▶️ Start a Server

The BoxLang core OS runtime doesn't know about a web application. Our web support runtime provides this functionality, a crucial part of the MiniServer and the Servlet (JEE, Jakarta, CommandBox) runtime. This runtime enhances the core boxlang runtime, making it multi-runtime and web deployable.

If you use our Windows installer or our Quick Installer, you will have the boxlang-miniserver binary installed in your operating system. You will use this to start servers. Just navigate to any folder that you want to start a server in and run boxlang-miniserver.

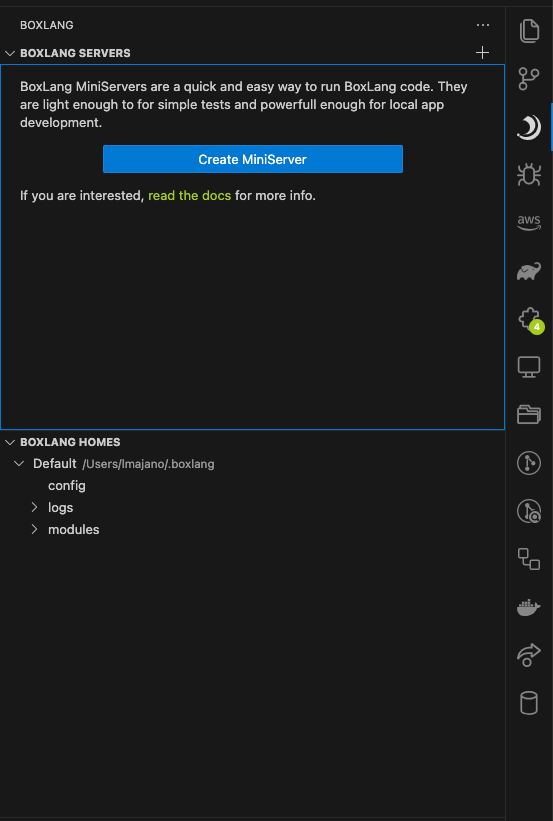

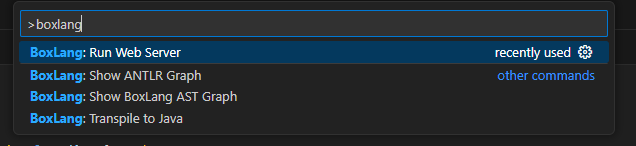

Please note that our VSCode BoxLang Extension can also assist you in managing and starting/stopping servers.

# Mac / *unix
cd mySite
boxlang-miniserver

# Windows
cd mySite
boxlang-miniserver.bat

# Native Jar execution
cd mySite
java -jar /usr/local/lib/boxlang-miniserver-1.0.0.jar

Once you run the command, the following output will appear in your console:

+ Loaded environment variables from: /path/to/webroot/.env
+ Starting BoxLang Server...
  - Web Root: /home/lmajano/Sites/temp
  - Host: 0.0.0.0
  - Port: 8080
  - Debug: null
  - Config Path: null
  - Server Home: null
  - Health Check: false
  - Health Check Secure: false
+ Starting BoxLang Runtime...
  - BoxLang Version: 1.4.0-snapshot+0 (Built On: 2025-08-01 16:03:36)
  - Runtime Started in 652ms
+ Security protection enabled - blocking access to hidden files (starting with .)
+ WebSocket Server started
+ BoxLang MiniServer started in 818ms at: http://localhost:8080
Press Ctrl+C to stop the server.

As you can see from the output, this is the result of the command:

Use the current working directory as the web root.
Bind to 0.0.0.0:8080 by default (accessible from any network interface)
Automatic .env file loading - Environment variables from .env files in the webroot are loaded into system properties
Built-in security protection - Blocks access to hidden files and directories (starting with .) for security
WebSocket support enabled by default at /ws endpoint
This configures the web server with some default welcome files and no rewrites.
BoxLang will process any BoxLang or CFML files
Uses the user's BoxLang home as the default for configuration and modules: ~/.boxlang

ALERT: The BoxLang Core knows nothing of web or HTTP, so the form, url, cookie, and cgi scopes will only exist when running the BoxLang web server (but not in the REPL, etc).

That's practically it. This is a very lightweight server that can get the job done. You can also start up servers using our VSCode IDE by opening the command palette and clicking Start a BoxLang web server.

🔧 Arguments

These are the supported arguments you can pass into the binary to configure the server.

Argument

Value

--configPath path/boxlang.json -c path/boxlang.json

Relative/Absolute location of the boxlang.json to use. By default it uses the ~/.boxlang/boxlang.json

--debug -d

Put the runtime into debug mode. By default we use false

--host ip|domain

Bind the hostname to the mini server. By default we use 0.0.0.0 (all network interfaces)

--port 8080 -p 8080

The port to bind the mini server to. By default we use port 8080

--rewrites [index.bxm] -r [index.bxm]

Enable rewrites for applications using index.bxm as the file to use. You can also pass the name of the file to use: --rewrites myfile.bxm

--health-check

Enable health check endpoints at /health, /health/ready, and /health/live. These provide detailed server status, readiness, and liveness information in JSON format.

--health-check-secure

Restrict detailed health check information to localhost only. When enabled, non-localhost requests receive basic status only, while localhost gets full system details including JVM metrics and memory usage.

--serverHome path/ -s path/

The location of the BoxLang home for the miniserver. This is where it will look for the boxlang.json, place to put the log files, the compiled classes, load modules, and much more. By default, we use the OS home via the BOXLANG_HOME environment variable which usually points to the user's home: ~/.boxlang/

--webroot path/ -w path/

The webserver root. By default, we use the directory from where you started the command.

# Custom port and webroot
boxlang-miniserver --port 80 --webroot /var/www

# Custom port and server home
boxlang-miniserver --port 80 --serverHome /var/www/servers/myServer

# Custom port and rewrites enabled
boxlang-miniserver --port 80 --rewrites

# Enable health check endpoints for monitoring
boxlang-miniserver --health-check

# Enable secure health checks (detailed info only on localhost)
boxlang-miniserver --health-check --health-check-secure

# Production server with security and monitoring
boxlang-miniserver --port 8080 --host 0.0.0.0 --health-check-secure

🛡️Environment Variables

The boxlang-miniserver binary will also scan for several environment variables as overrides to the execution process.

Env Variable

Purpose

BOXLANG_CONFIG = PATH

Override the boxlang.json

BOXLANG_DEBUG = boolean

Enable or disable debug mode

BOXLANG_HOME = directory

Override the server HOME directory

BOXLANG_HOST = ip or domain

Override the 0.0.0.0 default to whatever IP or domain you like.

BOXLANG_PORT = 8080

Override the default port

BOXLANG_REWRITES = boolean

Enable or disable URL rewrites

BOXLANG_REWRITE_FILE = file.bxm

Choose the rewrite file to use. By default, it uses index.bxm

BOXLANG_WEBROOT = path

Override the location of the web root

BOXLANG_HEALTH_CHECK = boolean

Enable or disable health check endpoints

BOXLANG_HEALTH_CHECK_SECURE = boolean

Enable secure health checks (detailed info only on localhost)

BOXLANG_MINISERVER_OPTS = jvmOptions

A list of Java options to pass to the startup command

Environment variables are scanned first, then the command arguments. Thus, the command arguments take precedence.

🔒 Security Features

The BoxLang MiniServer includes built-in security features to protect your applications:

Hidden File Protection

The server automatically blocks access to hidden files and directories (those starting with a dot .). This security feature protects sensitive files such as:

.env files containing environment variables
.git directories and configuration
.htaccess and other web server configuration files
Any custom hidden files or directories

When a request is made for a hidden file, the server returns a 404 Not Found response for security reasons, without revealing whether the file actually exists.

Security Note: This protection is enabled by default and cannot be disabled. It's a fundamental security feature designed to prevent accidental exposure of sensitive configuration files.

🩺 Health Check Endpoints

The MiniServer provides comprehensive health monitoring capabilities through dedicated endpoints:

Basic Health Checks

Enable health checks with the --health-check flag:

boxlang-miniserver --health-check

This enables three endpoints:

/health - Complete health information including system metrics, JVM details, and runtime status
/health/ready - Readiness probe for load balancers (simple UP/DOWN status)
/health/live - Liveness probe for container orchestration (simple UP/DOWN status)

Secure Health Checks

For production environments, use the --health-check-secure flag:

boxlang-miniserver --health-check --health-check-secure

When secure mode is enabled:

Localhost requests receive full detailed health information
Remote requests receive only basic status information
This prevents sensitive system information from being exposed to external networks

Health Check Response Format

The /health endpoint returns comprehensive JSON information:

{
  "status": "UP",
  "timestamp": "2025-08-01T17:05:47.587438Z",
  "uptime": "1m 47s",
  "uptimeMs": 107245,
  "version": "1.4.0-snapshot+0",
  "buildDate": "2025-08-01 16:03:36",
  "javaVersion": "17.0.2",
  "memoryUsed": 152093696,
  "memoryMax": 4294967296
}

The health check provides:

Status - Current server status (UP/DOWN)
Timestamp - Current server time in ISO format
Uptime - Human-readable server uptime
UptimeMs - Server uptime in milliseconds
Version - BoxLang version information
Build Date - When BoxLang was built
Java Version - JVM version information
Memory Usage - Current memory usage in bytes
Memory Max - Maximum available memory in bytes

🌍 Environment Files

The MiniServer automatically loads environment variables from .env files located in your webroot directory:

Automatic .env Loading

When you start the server, it will automatically look for and load a .env file in the webroot:

# If webroot contains a .env file, you'll see:
+ Loaded environment variables from: /path/to/webroot/.env

.env File Format

Your .env file should contain key-value pairs:

# .env file example
DATABASE_URL=jdbc:mysql://localhost:3306/mydb
API_KEY=your-secret-api-key
DEBUG_MODE=true
CUSTOM_SETTING=value

Accessing Loaded Variables

Environment variables loaded from .env files are:

Added to Java System Properties - Accessible via System.getProperty("key")
Available in BoxLang - Accessible through the server.system.properties struct
Available to your applications - Can be used in BoxLang code for configuration

Privacy Note: Environment variables are NOT exposed through health check endpoints. Health checks only return basic server metrics and status information for security purposes.

🔌 WebSocket Support

The BoxLang MiniServer includes built-in WebSocket support for real-time communication:

WebSocket Endpoint

WebSocket connections are available at the /ws endpoint:

// JavaScript client example
const socket = new WebSocket('ws://localhost:8080/ws');

socket.onopen = function(event) {
    console.log('Connected to BoxLang WebSocket server');
};

socket.onmessage = function(event) {
    console.log('Message from server:', event.data);
};

socket.onclose = function(event) {
    console.log('Disconnected from server');
};

SocketBox - BoxLang WebSocket Library

For enhanced WebSocket functionality in your BoxLang applications, we recommend using SocketBox - our companion library specifically designed for BoxLang WebSocket development:

SocketBox is available on ForgeBox: https://forgebox.io/view/socketbox

SocketBox provides:

High-level WebSocket abstractions for BoxLang applications
Event-driven architecture with listeners and handlers
Room and namespace management for organizing connections
Built-in authentication and authorization support
Message broadcasting to multiple clients
Connection lifecycle management with automatic reconnection
Integration with BoxLang frameworks like ColdBox

Installing SocketBox

# Install via CommandBox
box install socketbox

# Or download from ForgeBox
# https://forgebox.io/view/socketbox

SocketBox Example

// BoxLang server-side WebSocket handler using SocketBox
class {

    function onConnect( socket, data ) {
        // Handle new WebSocket connection
        socket.join( "chatRoom" )
        socket.broadcast( "userJoined", { user: data.username } )
    }

    function onMessage( socket, message ) {
        // Handle incoming messages
        socket.to( "chatRoom" ).emit( "newMessage", {
            user: socket.data.username,
            text: message.text,
            timestamp: now()
        })
    }

    function onDisconnect( socket ) {
        // Handle client disconnection
        socket.broadcast( "userLeft", { user: socket.data.username } )
    }
}

WebSocket Features

Real-time bidirectional communication between client and server
Automatic connection management with built-in error handling
Integration with BoxLang runtime for server-side message processing
Low latency communication for interactive applications
Enhanced functionality with SocketBox library for production applications

The WebSocket server is automatically started when the MiniServer launches, as indicated by the console message:

+ WebSocket Server started

WebSocket Note: The WebSocket endpoint is always enabled and cannot be disabled. This provides a consistent real-time communication channel for all BoxLang applications. For production applications, consider using SocketBox for enhanced features and easier development.

🏠 Default Welcome Files

The BoxLang MiniServer automatically serves welcome files when a request is made to a directory. The server looks for these files in the following order:

index.bxm - BoxLang Markup (preferred)
index.bxs - BoxLang Script
index.cfm - CFML Markup (legacy compatibility)
index.cfs - CFML Script (legacy compatibility)
index.htm - HTML
index.html - HTML

Welcome File Behavior

When a request is made to a directory (e.g., http://localhost:8080/), the server will:

Check for welcome files in the order listed above
Serve the first match found in the directory
Enable directory listing if no welcome file is found (showing folder contents)
Process BoxLang/CFML files through the runtime before serving
Serve static files (HTML) directly without processing

Example Directory Structure

webroot/
├── index.bxm          # ✅ Will be served for /
├── index.html         # ❌ Will be ignored (index.bxm takes precedence)
├── subfolder/
│   ├── index.cfm      # ✅ Will be served for /subfolder/
│   └── page.bxm       # ✅ Available at /subfolder/page.bxm
└── static/
    └── styles.css     # ✅ Available at /static/styles.css

Tip: Use index.bxm for your main pages to take advantage of BoxLang's modern syntax and features while maintaining compatibility with legacy CFML files.

🔀 URL Rewrites

The BoxLang MiniServer supports URL rewrites for creating clean, SEO-friendly URLs and building single-page applications (SPAs):

Enabling URL Rewrites

Enable URL rewrites with the --rewrites flag:

# Enable rewrites with default file (index.bxm)
boxlang-miniserver --rewrites

# Enable rewrites with custom file
boxlang-miniserver --rewrites app.bxm

# Using environment variable
BOXLANG_REWRITES=true boxlang-miniserver

How URL Rewrites Work

When URL rewrites are enabled:

Any request that does not match an asset will route through your specified rewrite file (default: index.bxm)
This includes requests to JavaScript, CSS, images and BXM, BXS, or BX files.

URL Rewrite Examples

// In your index.bxm (rewrite handler)
switch( cgi.path_info ) {
    case "/":
        // Home page
        include "views/home.bxm";
        break;

    case "/products":
        // Products listing
        include "views/products.bxm";
        break;

    case "/products/":
        // Individual product (extract ID from URL)
        productId = listLast( cgi.path_info, "/" );
        request.productId = productId;
        include "views/product-detail.bxm";
        break;

    default:
        // 404 page
        bx:header statusCode=404;
        include "views/404.bxm";
}

Use Cases for URL Rewrites

Single Page Applications (SPAs) - Route all requests to your main app file
Clean URLs - /products/123 instead of /product.bxm?id=123
Custom routing - Implement your own URL routing logic
Framework applications - Perfect for ColdBox, FW/1, or custom frameworks

Console Output

When rewrites are enabled, you'll see:

+ Enabling rewrites to /index.bxm

Rewrite Note: URL rewrites work best for dynamic applications and frameworks. Static websites typically don't need URL rewriting enabled.

🛑 Server Management

Graceful Shutdown

The BoxLang MiniServer supports graceful shutdown for safe server termination:

# Stop the server gracefully
Press Ctrl+C

When you stop the server, you'll see:

Shutting down BoxLang Server...
BoxLang Server stopped.

The graceful shutdown process:

Stops accepting new requests immediately
Completes active requests before shutting down
Closes the BoxLang runtime properly
Releases all resources (ports, file handles, etc.)

Background Execution

For production deployments, you can run the server in the background:

# Run in background (Unix/Linux/Mac)
nohup boxlang-miniserver > server.log 2>&1 &

# Or using screen/tmux
screen -S boxlang-server
boxlang-miniserver

# Or using systemd (Linux)
# Create a service file for automatic startup

Production Note: For production deployments, consider using process managers like systemd, supervisor, or Docker containers for better service management and automatic restarts.

⚡ Performance Features

The BoxLang MiniServer includes several built-in performance optimizations:

Automatic GZIP Compression

The server automatically compresses responses using GZIP compression for better performance:

Automatic compression for responses larger than 1.5KB
Smart content detection - only compresses suitable content types
Client support detection - only compresses when client supports it
Bandwidth savings - typically 60-80% reduction in transfer size

Performance Characteristics

Fast startup times - typically under 1 second
Low memory footprint - minimal overhead beyond your application
High concurrency - built on Undertow's high-performance architecture
Zero-copy static file serving - optimized static asset delivery
Keep-alive connections - reduces connection overhead

Performance Tips

# Allocate more memory for better performance
BOXLANG_MINISERVER_OPTS="-Xmx2g -Xms512m" boxlang-miniserver

# Enable health checks for monitoring
boxlang-miniserver --health-check

# Use environment variables for configuration
export BOXLANG_PORT=8080
export BOXLANG_HOST=0.0.0.0
boxlang-miniserver

Performance Tip: The MiniServer is optimized for development and light production workloads. For high-traffic applications, consider using CommandBox with load balancing and clustering capabilities.

Using 3rd Party Jars

You can load up custom third-party JARs into the runtime in two ways

BOXLANG_HOME/lib - You can place all the jars that the runtime will load in this location
1. Remember, you can use the --serverHome to choose the location of the server's home
Add via the classpath to your runner.

Please note that if you use the -cp approach, then you need to use a full java -cp syntax or you can customize the boxlang-miniserver shell scripts to do your bidding.

If you want to test 3rd part libs with the web server, you’ll need to use a different syntax that uses the -cp (classpath) JVM arg and specifies both the boxlang jar AND a semicolon-delimited list of the jars you want to use. It’s a little annoying, but this is how Java works.

# Format
java -cp {jarpath;jarpath2} ortus.boxlang.web.MiniServer


# Example
java -cp boxlang-miniserver-1.0.0.jar;/path/to/my.jar;/path/to/another.jar ortus.boxlang.web.MiniServer

Modules

The MiniServer can use any module you install into the OS home via the install-bx-module binary. However, if you choose your own server home using the server-home argument or the environment variable. Then, place the modules inside a modules directory inside the server's home.

JVM Options

You can use the BOXLANG_MINISERVER_OPTS env variable to seed the Java arguments the miniserver will start with.

BOXLANG_MINISERVER_OPTS="-Xmx512m"
boxlang-miniserver

Runtime Source Code

The runtime source code can be found here: https://github.com/ortus-boxlang/boxlang-miniserver

We welcome any pull requests, testing, docs, etc.

🌐 Reverse Proxy Setup

For production deployments, it's recommended to place a reverse proxy in front of the BoxLang MiniServer. This provides additional security, SSL termination, load balancing, and better static file serving capabilities.

🔧 Nginx Configuration

Nginx is a popular choice for reverse proxying BoxLang applications:

Basic Nginx Configuration

# /etc/nginx/sites-available/boxlang-app
server {
    listen 80;
    server_name your-domain.com;

    # Redirect HTTP to HTTPS (recommended)
    return 301 https://$server_name$request_uri;
}

server {
    listen 443 ssl http2;
    server_name your-domain.com;

    # SSL Configuration
    ssl_certificate /path/to/your/certificate.crt;
    ssl_certificate_key /path/to/your/private.key;
    ssl_protocols TLSv1.2 TLSv1.3;
    ssl_ciphers HIGH:!aNULL:!MD5;

    # Security Headers
    add_header X-Frame-Options DENY;
    add_header X-Content-Type-Options nosniff;
    add_header X-XSS-Protection "1; mode=block";
    add_header Strict-Transport-Security "max-age=31536000; includeSubDomains";

    # Static file serving (optional - let nginx handle static assets)
    location ~* \.(css|js|png|jpg|jpeg|gif|ico|svg|woff|woff2|ttf|eot)$ {
        root /var/www/your-app/static;
        expires 1y;
        add_header Cache-Control "public, immutable";
        try_files $uri @boxlang;
    }

    # WebSocket support
    location /ws {
        proxy_pass http://127.0.0.1:8080;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_cache_bypass $http_upgrade;
        proxy_read_timeout 86400;
    }

    # Health checks (restrict to internal networks if needed)
    location ~ ^/health {
        proxy_pass http://127.0.0.1:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # Optional: Restrict health checks to internal IPs
        # allow 10.0.0.0/8;
        # allow 172.16.0.0/12;
        # allow 192.168.0.0/16;
        # deny all;
    }

    # Main application proxy
    location / {
        proxy_pass http://127.0.0.1:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Forwarded-Port $server_port;

        # Timeouts
        proxy_connect_timeout 30s;
        proxy_send_timeout 30s;
        proxy_read_timeout 30s;

        # Buffer settings
        proxy_buffering on;
        proxy_buffer_size 128k;
        proxy_buffers 4 256k;
        proxy_busy_buffers_size 256k;
    }

    # Fallback for static files if not found
    location @boxlang {
        proxy_pass http://127.0.0.1:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Load Balancing with Multiple MiniServers

# Upstream configuration for load balancing
upstream boxlang_backend {
    least_conn;
    server 127.0.0.1:8080;
    server 127.0.0.1:8081;
    server 127.0.0.1:8082;

    # Health checks (nginx plus only)
    # health_check interval=10s fails=3 passes=2;
}

server {
    listen 443 ssl http2;
    server_name your-domain.com;

    # SSL and security headers (same as above)

    location / {
        proxy_pass http://boxlang_backend;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

🔥 Apache Configuration

Apache HTTP Server with mod_proxy for reverse proxying:

Basic Apache Configuration

# /etc/apache2/sites-available/boxlang-app.conf
<VirtualHost *:80>
    ServerName your-domain.com

    # Redirect HTTP to HTTPS
    Redirect permanent / https://your-domain.com/
</VirtualHost>

<VirtualHost *:443>
    ServerName your-domain.com

    # SSL Configuration
    SSLEngine on
    SSLCertificateFile /path/to/your/certificate.crt
    SSLCertificateKeyFile /path/to/your/private.key
    SSLProtocol TLSv1.2 TLSv1.3
    SSLCipherSuite HIGH:!aNULL:!MD5

    # Security Headers
    Header always set X-Frame-Options DENY
    Header always set X-Content-Type-Options nosniff
    Header always set X-XSS-Protection "1; mode=block"
    Header always set Strict-Transport-Security "max-age=31536000; includeSubDomains"

    # Enable required modules
    LoadModule proxy_module modules/mod_proxy.so
    LoadModule proxy_http_module modules/mod_proxy_http.so
    LoadModule proxy_wstunnel_module modules/mod_proxy_wstunnel.so

    # WebSocket support
    ProxyRequests Off
    ProxyPreserveHost On

    # WebSocket proxy
    ProxyPass /ws ws://127.0.0.1:8080/ws
    ProxyPassReverse /ws ws://127.0.0.1:8080/ws

    # Health check endpoints
    ProxyPass /health http://127.0.0.1:8080/health
    ProxyPassReverse /health http://127.0.0.1:8080/health

    # Main application proxy
    ProxyPass / http://127.0.0.1:8080/
    ProxyPassReverse / http://127.0.0.1:8080/

    # Set headers for the backend
    ProxyPassReverse / http://127.0.0.1:8080/
    ProxyPreserveHost On
    ProxyAddHeaders On

    # Static file serving (optional)
    Alias /static /var/www/your-app/static
    <Directory "/var/www/your-app/static">
        Options -Indexes
        AllowOverride None
        Require all granted

        # Cache static files
        <FilesMatch "\.(css|js|png|jpg|jpeg|gif|ico|svg|woff|woff2|ttf|eot)$">
            ExpiresActive On
            ExpiresDefault "access plus 1 year"
        </FilesMatch>
    </Directory>

    # Error and access logs
    ErrorLog ${APACHE_LOG_DIR}/boxlang-app_error.log
    CustomLog ${APACHE_LOG_DIR}/boxlang-app_access.log combined
</VirtualHost>

Required Apache Modules

# Enable required Apache modules
sudo a2enmod proxy
sudo a2enmod proxy_http
sudo a2enmod proxy_wstunnel
sudo a2enmod ssl
sudo a2enmod headers
sudo a2enmod expires
sudo a2enmod rewrite

# Enable the site and restart Apache
sudo a2ensite boxlang-app.conf
sudo systemctl reload apache2

🪟 IIS Configuration

Internet Information Services (IIS) configuration using Application Request Routing (ARR):

Prerequisites

Install Application Request Routing (ARR) module
Install URL Rewrite module

IIS Configuration Steps

Create a new website in IIS Manager
Configure ARR at the server level:

<!-- web.config at server level -->
<configuration>
    <system.webServer>
        <proxy enabled="true" />
        <rewrite>
            <globalRules>
                <rule name="BoxLang Reverse Proxy" stopProcessing="true">
                    <match url="(.*)" />
                    <action type="Rewrite" url="http://127.0.0.1:8080/{R:1}" />
                    <serverVariables>
                        <set name="HTTP_X_FORWARDED_PROTO" value="https" />
                        <set name="HTTP_X_FORWARDED_FOR" value="{REMOTE_ADDR}" />
                        <set name="HTTP_X_REAL_IP" value="{REMOTE_ADDR}" />
                    </serverVariables>
                </rule>
            </globalRules>
        </rewrite>
    </system.webServer>
</configuration>

Site-Level web.config

<!-- web.config for your BoxLang application site -->
<configuration>
    <system.webServer>
        <rewrite>
            <rules>
                <!-- WebSocket support -->
                <rule name="WebSocket" stopProcessing="true">
                    <match url="ws(.*)" />
                    <action type="Rewrite" url="ws://127.0.0.1:8080/ws{R:1}" />
                </rule>

                <!-- Health check endpoints -->
                <rule name="Health Checks" stopProcessing="true">
                    <match url="health(.*)" />
                    <action type="Rewrite" url="http://127.0.0.1:8080/health{R:1}" />
                </rule>

                <!-- Static files (optional - let IIS handle) -->
                <rule name="Static Files" stopProcessing="true">
                    <match url="^(.*\.(css|js|png|jpg|jpeg|gif|ico|svg|woff|woff2|ttf|eot))$" />
                    <conditions>
                        <add input="{REQUEST_FILENAME}" matchType="IsFile" />
                    </conditions>
                    <action type="None" />
                </rule>

                <!-- Main application -->
                <rule name="BoxLang Application" stopProcessing="true">
                    <match url="(.*)" />
                    <action type="Rewrite" url="http://127.0.0.1:8080/{R:1}" />
                    <serverVariables>
                        <set name="HTTP_X_FORWARDED_PROTO" value="https" />
                        <set name="HTTP_X_FORWARDED_FOR" value="{REMOTE_ADDR}" />
                        <set name="HTTP_X_REAL_IP" value="{REMOTE_ADDR}" />
                    </serverVariables>
                </rule>
            </rules>
        </rewrite>

        <!-- Security headers -->
        <httpProtocol>
            <customHeaders>
                <add name="X-Frame-Options" value="DENY" />
                <add name="X-Content-Type-Options" value="nosniff" />
                <add name="X-XSS-Protection" value="1; mode=block" />
                <add name="Strict-Transport-Security" value="max-age=31536000; includeSubDomains" />
            </customHeaders>
        </httpProtocol>

        <!-- Static content caching -->
        <staticContent>
            <clientCache cacheControlMode="UseMaxAge" cacheControlMaxAge="365.00:00:00" />
        </staticContent>
    </system.webServer>
</configuration>

🚀 Production Setup Recommendations

1. Configure MiniServer for Production

# Bind to localhost only (behind reverse proxy)
boxlang-miniserver --host 127.0.0.1 --port 8080 --health-check-secure

# Or using environment variables
export BOXLANG_HOST=127.0.0.1
export BOXLANG_PORT=8080
export BOXLANG_HEALTH_CHECK=true
export BOXLANG_HEALTH_CHECK_SECURE=true
boxlang-miniserver

2. System Service Setup

Create a systemd service for automatic startup:

# /etc/systemd/system/boxlang-miniserver.service
[Unit]
Description=BoxLang MiniServer
After=network.target

[Service]
Type=simple
User=boxlang
Group=boxlang
WorkingDirectory=/var/www/your-app
Environment=BOXLANG_HOST=127.0.0.1
Environment=BOXLANG_PORT=8080
Environment=BOXLANG_HEALTH_CHECK=true
Environment=BOXLANG_HEALTH_CHECK_SECURE=true
ExecStart=/usr/local/bin/boxlang-miniserver
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target

# Enable and start the service
sudo systemctl enable boxlang-miniserver
sudo systemctl start boxlang-miniserver
sudo systemctl status boxlang-miniserver

3. Security Considerations

Bind to localhost only when behind a reverse proxy
Enable health check security to restrict detailed information
Use HTTPS at the reverse proxy level
Configure proper security headers in your reverse proxy
Restrict health check endpoints to internal networks if needed
Regular security updates for your reverse proxy software

4. Monitoring and Logging

Access logs at the reverse proxy level
Health check monitoring using /health/ready and /health/live
Performance monitoring through reverse proxy metrics
Log aggregation for centralized monitoring

Production Tip: Using a reverse proxy provides additional benefits like SSL termination, static file serving, request compression, security headers, and load balancing capabilities that complement the BoxLang MiniServer's performance.

WebSocket Note: All reverse proxy configurations include WebSocket support. Make sure your reverse proxy properly handles WebSocket upgrade requests for real-time features to work correctly.

PreviousJSR-223 Scripting NextTry BoxLang!

Last updated 7 days ago

Was this helpful?
